GLASS FIBER INSULATED WIRE
Copper or aluminum wire is insulated by double winding crosswise with glass fiber rope and varnished.
Extra wrapping can also be added if desired.
The melting point of the glass fiber is the same as that of the glass and is about 1000 ° C.
If it is the isolation level, it is determined according to the used data.
Thickness: 1-8 mm
Width: 3-20 mm
Radius: 0.4-1.6 mm
Material: Electrolytic Copper and Aluminum DIN 46452
Places Used
High-voltage motor / generator
DC motor / generator
Airtight motor
Special type of trailers
Test Conditions Test Methods
Mechanical Properties IEC 851-4
Electrical Specifications IEC 851-6
Thermal Properties IEC 851-5

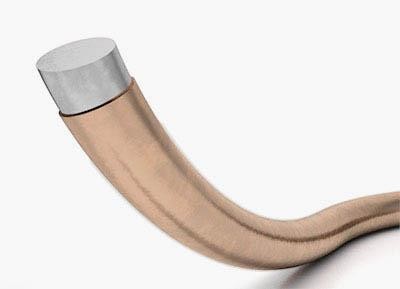

ALUMINUM ENAMEL
THERMAL CLASS (° C) Class HB,180 ° C
INSULATION | BASE LAYER Polyesterimide
INSULATION | LAYER ON COATING. NoINSULATION | BAG LAYER None
INSULATION | CONNECTION. No
PRODUCTION INTERVAL (MM) 0.18 - 6.00 mm
SPECIFIC PROPERTIES Better weight ratio, price advantage compared to Baku, easy winding thanks to its soft and flexible structure
STANDARDS TS TS EN 60317-15
STANDARDS I.E.C IEC 60317 - 15
HEAT CLASS (° C) 180 °
SOFT DRILLING TEMPERATURE (° C)> 200 ° C
SEALING-TEMPERATURE (° C) Solder Not Almaz
HEAT SHOCK (° C) 200 ° C
HEAT ADHESIVE TEMPERATURE (° C) Not applicable
BACK SOFTENING TEMPERATURE (° C) Not applicable
NORMAL SOLVENTLER RESISTANCE 4H
DIPING VARNISH DIRANCY Very Good
Cooler GAZ DİRENCİ Very Good
TRANSFORMER AGAINST RESISTANCE Very Good
APPLICATION AREA Light Motors, High Voltage Transformers
APPLICATIONS Light Motors, Mechanical Ballasts, High Voltage Transformers
